Step 3

SETUP ZEROTIER ONE SOFTWARE TO HOST/SERVER

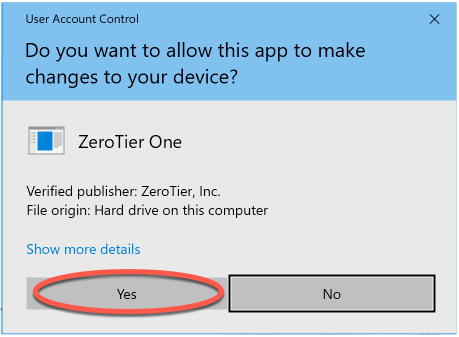

Download installer from https://zerotier.com/download.shtml
For Windows, file name: ZeroTier One.msi

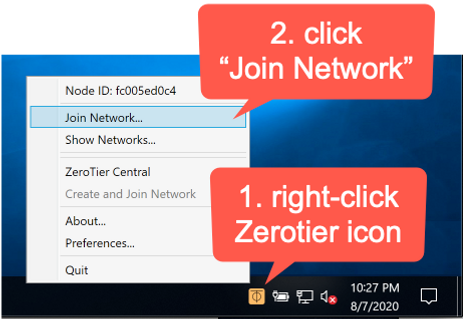

Join ZeroTier Network from the ZeroTier account registered earlier.
A Network ID can be found by login to https://zerotier.com with sign in

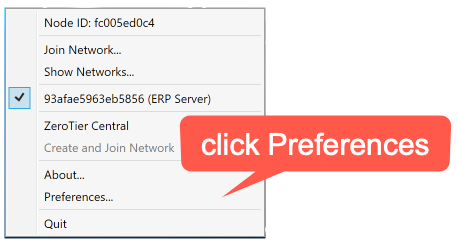

Ensure the ZeroTier program start together with the Host / Server Windows start-up that standby for remote client for connect anytime.


A well setup and "Joined" terminal will shown as below...
right-click ZeroTier icon > Show Networks...

Status > OK
Type > PUBLIC
Allow Managed IP > checked
Checked > Connected


In Windows Control Panel > Network and Internet > Network and Sharing Center
You will fine a new ZeroTier network adapter appear here with VPN IP address assigned.


Businessmen

ZeroTier One VPN Solution simplified quick setup guides

​

Global Area Networking

Easily connect cloud, mobile, desktop, and data center resources anywhere.
Learn more https://www.zerotier.com

Step 4

Update ZeroTier configuration document


VERY IMPORTANT RECORD TO KEEP IN GOOGLE DRIVE

ZeroTier software VPN setup configuration


Information before setup

TSPLUS Remote Access Computer ID: xxx xxx
Server Fixed LAN IP address: 192.168.xxx.xxx
Server backup administrator: support
Password: 1.TSPLUS.net/southeast-asia

ZeroTier Registration
Customer Company Name:
XXXX Pte.Ltd.
User First Name: Adrian Lastname: Foo
Registered Account: tsplus.hk@gmail.com (use customer email address)

Password: 1.TSPLUS.net/southeast-asia

Network ID: 0cccb752f71XXXXX
The device name that Joined: ERP Server


Server ZeroTier VPN Virtual IP address: 10.147.17.149

Remote Desktop Connection: 10.147.17.149:54489
WEB http://10.147.17.149:58011
Secured WEB https://10.147.17.149:52886
